- Supports bi-directional PoC (Power over Cable)
- Compact design for easy and flexible installation
HDMI 1.4b and HDCP 1.4 compliant - Video resolution up to 4K@30Hz RGB/YCbCr 4:4:4
- Support 10.2Gbps video bandwidth
- Signal transmission distance can be extended up to 328ft / 100m via CAT6/6A cable
- Zero-latency and uncompressed signal transmission
- Supports HDMI 3D video formats
- Supports bi-directional IR pass-through
- Supports CEC pass-through
- Supports LPCM 2.0CH, Dolby Digital 5.1, Dolby Digital Plus 7.1 and DTS 5.1 audio
- Supports EDID copy and pass-through between the source and display devices
- Supports bi-directional PoC (Power over Cable)
- Compact design for easy and flexible installation
- 24/7 stability and working
| Input and Output | |

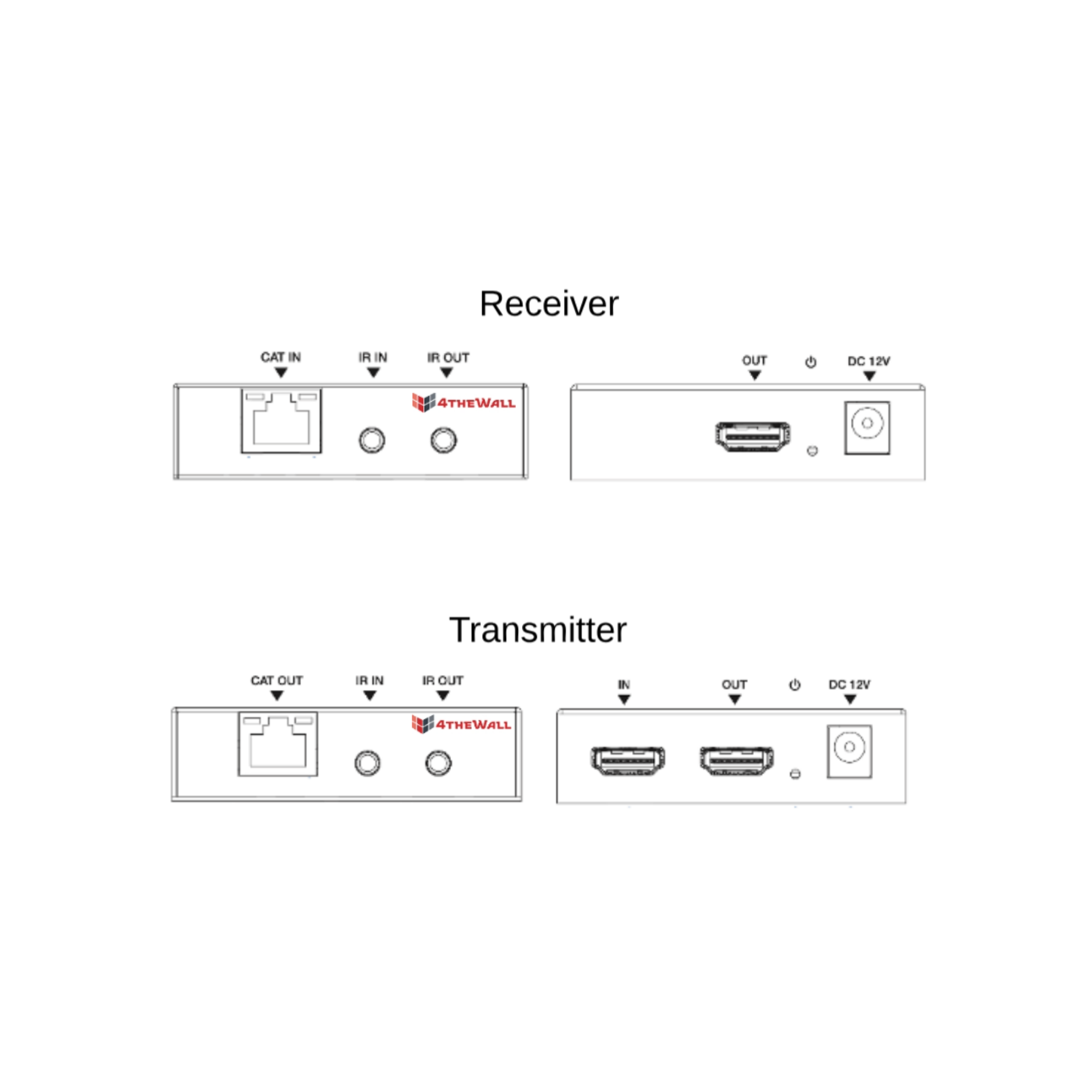

| Transmitter | 1× HDMI1.4b Input 1× IR IN [3.5mm audio jack] 1× HDMI1.4b Output 1× IR OUT [3.5mm audio jack] 1× CAT OUT [RJ45] |
| Receiver | 1× CAT IN [RJ45] Input 1× IR IN [3.5mm audio jack] 1× HDMI1.4b Output 1× IR OUT [3.5mm audio jack] |
| Inputs Resolution | Up to 4K@30Hz 4:4:4 |
| HDCP Compliance | HDCP 1.4 |
| General Features | |
| Video Bandwith | 10.2Gbps |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 |
| IR Bandwidth and Level | Wideband 20k-60kHz – 5Vp-p |
| Color | 8/10/12bit |
| Audio Formats | LPCM 2.0, Dolby 5.1, DD+7.1, DTS 5.1 |
| Transmission Distance | 100m/328ft for 4K@30Hz over CAT6/6A cable |
| Others | |
| Power Connection | DC 12V/1A |
| Working Temperature | 32 – 104°F / 0 – 40°C |
| Humidity Range | Working: 20%~80% (relative humidity, non-condensing) Storage: 10%~90% (relative humidity, non-condensing) |
| Storage Temperature | -4 – 140°F / -20 – 60°C |
| Dimensions | Transmitter/Receiver: 74mm (W) × 68mm (D) × 20mm (H) |
| Weight | Transmitter: 162g; Receiver: 159g |
| Power Value/Consumption | 3.24W (Max) |
| Mounting | Desktop (Metal Enclosure and Black), optional rack mount kit |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Compliance | |
| EU/USA | CE/FCC/UL DoC document |
| Package Details | |

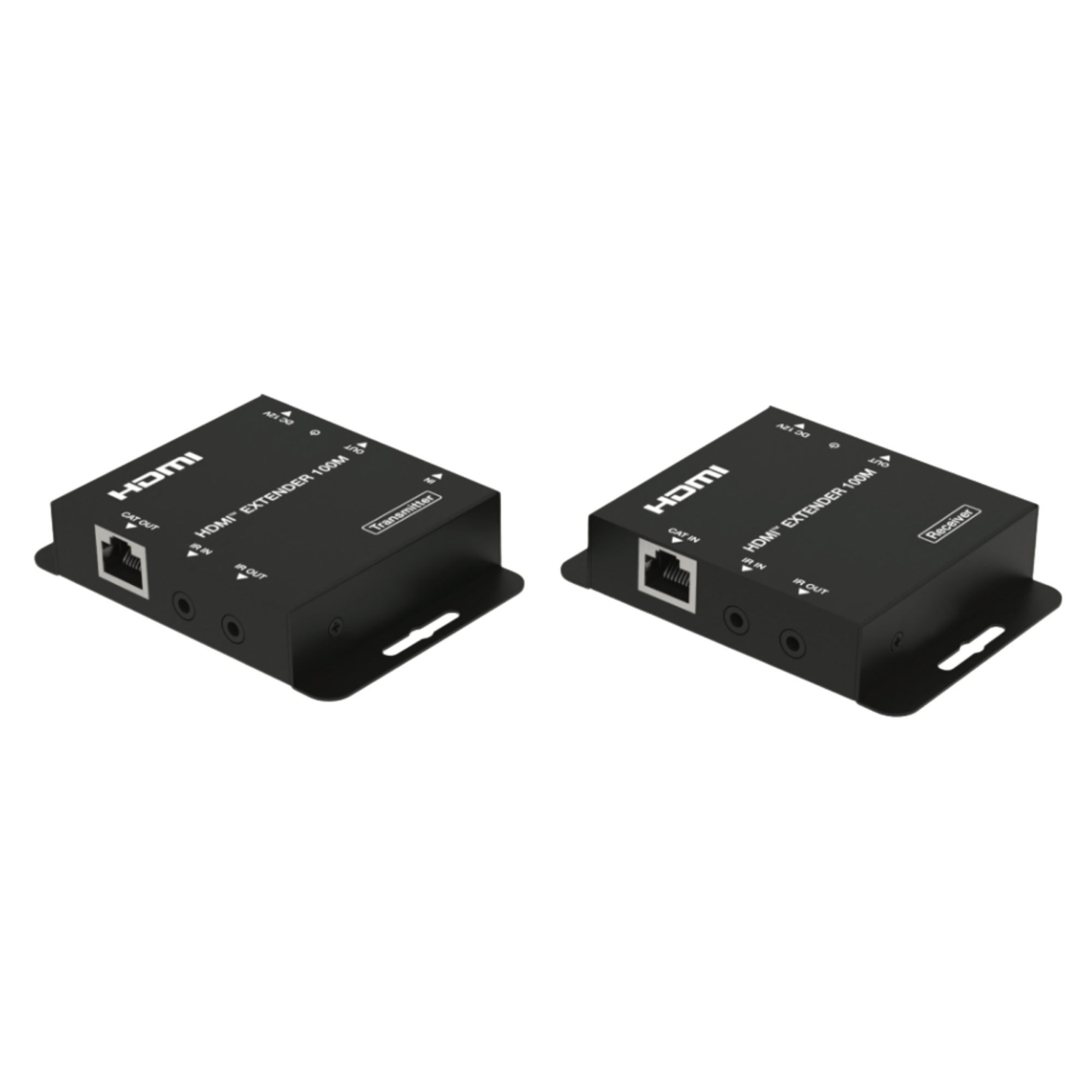

| Package Contents | 1× 4K30 HDMI™ Extender (TX) 1× 4K30 HDMI™ Extender (RX) 1× IR Blaster Cable (1.5m) 1× IR Wideband Receiver Cable (1.5m) 1× 12V/1A Multinational Locking Power Supply 1× QR Code for User Manual |
