- 8 bi-directional serial ports for controlling matrix switchers, projectors and other professional AV equipment
- 8 configurable IR output or one-way serial control ports for televisions, media players and compatible devices
- 8 relay ports for controlling lighting, doors, curtains, motorized screens and other contact-controlled equipment
- 8 digital input ports for receiving signals from sensors, switches and alarm systems
- Gigabit Ethernet interface for IP-based monitoring and device control
Programmable interactive user-interface support
- Supports centralized management of multiple devices and subsystems
Integrated IR learning function
- High-performance embedded web server
- Online firmware-upgrade support
- Compatible with standard network communication protocols
- Password protection against unauthorized access
- Built-in synchronized system clock
- Standard 19-inch 1U rack-mount design
- Suitable for large-scale control and automation systems

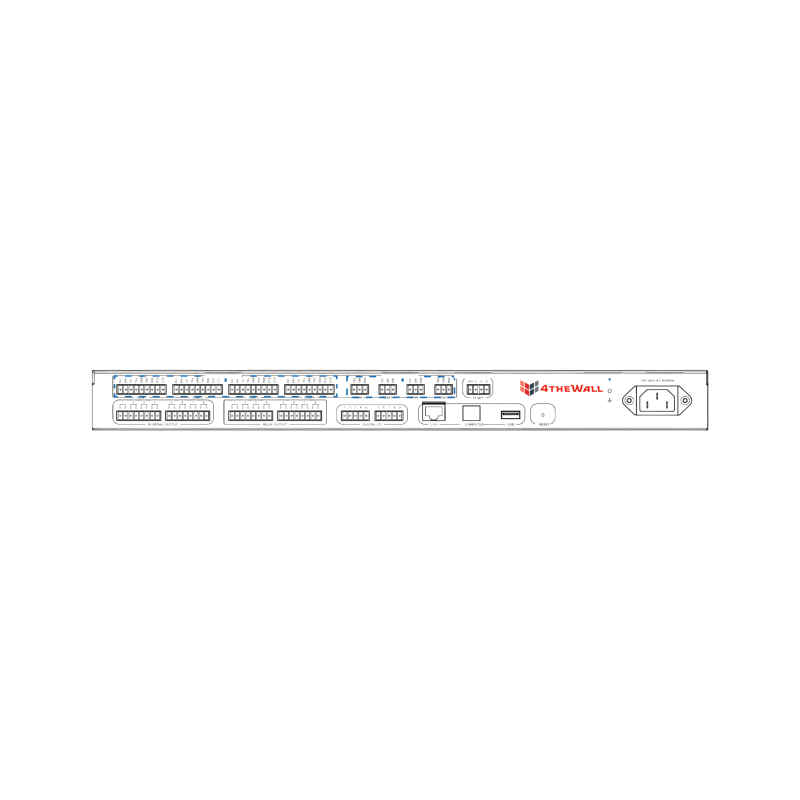

| Input and Output | |
| Inputs / Outputs | 1 x LAN (RJ45) 4 x RS232/RS485/RS422 (9 pin phoenix) 4 x RS232 (3 pin phoenix) 8 x Relay Port (Low Voltage) 2A 30VDC / 1A 125 VAC peak 8 x IR 1A 20K-60KHZ (2 pin phoenix) 8 x GPIO Port 0-24V |
| General Features | |
| RS232 | Full duplex |
| RS485 | Half duplex |
| RS422 | Full duplex |
| Baud Rate | 2400, 4800, 9600, 14400, 19200, 38400, 56000, 57600 and 115200 |
| LAN | 10/100M Ethernet |
| Relays | Up to 2A 30VDC / 1A 125 VAC peak |
| Transmission Distance | 100m (CAT5E/6/6A/7) |
| Management Features | |
| Management and Control | TCP/IP, USB |
| Others | |
| Power Connection | Input: AC 100 – 240V 50/60Hz |
| Working Temperature | 32 – 104°F / 0 – 40°C |
| Humidity Range | 20 – 90% RH (no condensation) |
| Storage Temperature | -4 – 140°F / -20 – 60°C |
| Dimensions | 440mm × 200mm × 44mm – Width/Depth/Height, Metal Enclosure |
| Weight | 2.1 |
| Power Value/Consumption | 55 W |
| Mounting | 1U Rack |
| ESD Protection | ±8kV (Air-Gap Discharge) & ±4kV (Contact Discharge) |
| Certifications | |
| EU/USA | CE/FCC/UL |
| Package Details | |
| Package Contents | 1 x Integrated Controller 4 x 3-pin Phoenix Connectors 1 x 4-pin Phoenix Connector 2 x 5-pin Phoenix Connectors 4 x 8-pin Phoenix Connectors 4 x 9-pin Phoenix Connectors 2 x Mounting Ears 6 x Machine Screws 1 x 220V/10A AC Power Cord |
