16 X HDMI 1.3 Input
-
16 X HDMI 1.3 Output (Matrix and Videowall)
-
Supported HDCP 1.4
-
Supported 6.75Gbps bandwidth
-
Supported 1080P@60Hz Input and Output
-
Support splicing video wall function
-
Compact Design
-
Control WEB GUI, TCP/IP, RS232 and IR remote
-
EDID Management
-
Seamless switching without image tear, black screen or flicker in the switching process
-
Support any window roaming (2 or 4 windows) and image overlay function (2 or 4 layers)
-
2U Rack mount design
Input and Output | |

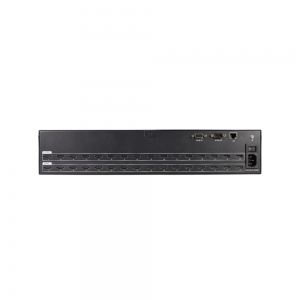

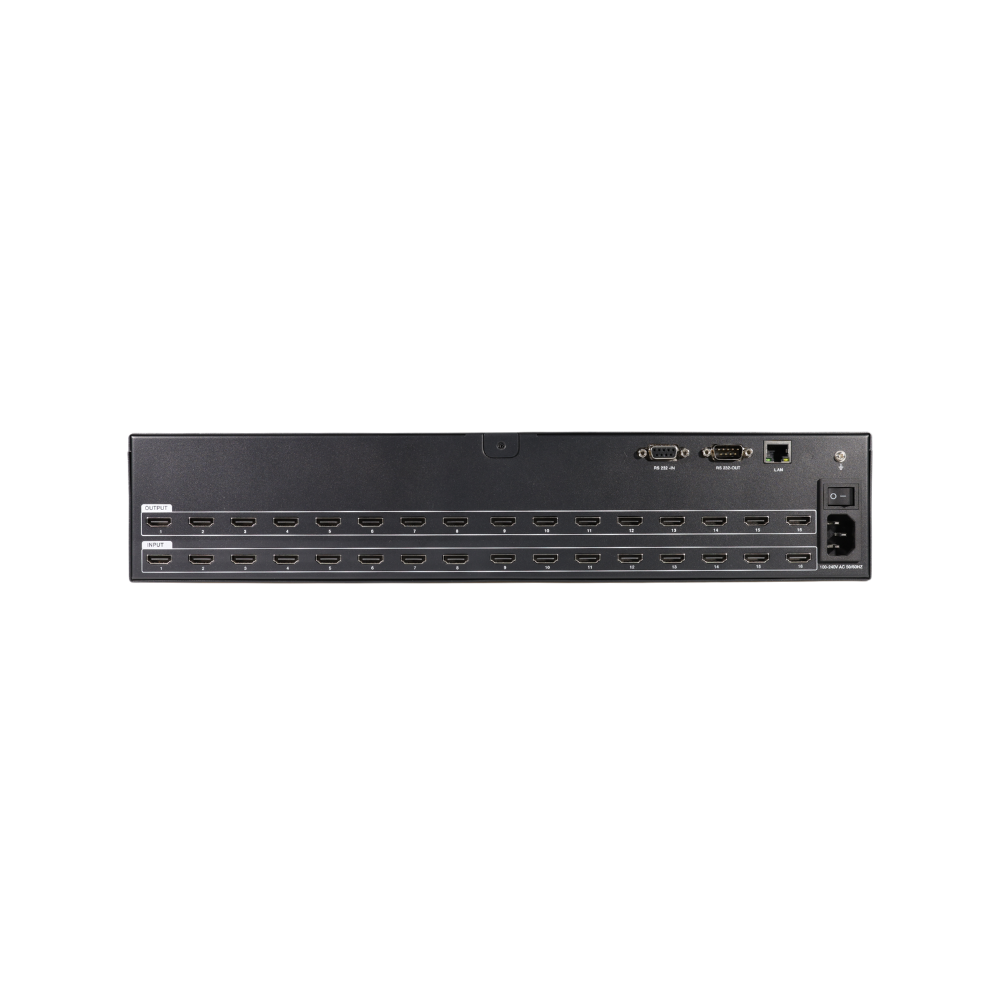

Inputs | 16 x HDMI 1.3 Type A (19-pin female), RS232 (9 Pin) |
Outputs | 16 x HDMI 1.3 Type A (19-pin female), RS232 (9 Pin) |
Inputs Resolution | Up to 1080P@60Hz |
Outputs Resolution | Up to 1080P@60Hz |
General Features | |
Video Bandwith | 6.75 Gbps |
Color Space | RGB, YCbCr 4:4:4/4:2:2 |
Color | 8 Bit |
HDCP | 1.4 and 1.x |
Audio Formats | HDMI:PCM2.0 |
Management Features | |
Management and Control | WEB GUI, TCP/IP, RS232 (3pin Phoenix) with API |
Others | |
Power Connection | DC 12V/3.7A (US/EU standard) (Locking connector), AC 100-240V 50/60Hz |
Working Temperature | 32 – 104°F / 0 – 40°C |
Humidity Range | 20 – 90% RH (no condensation) |
Storage Temperature | -4 – 140°F / -20 – 60°C |
Dimensions | 440mm × 283mm × 88.6mm – Width/Depth/Height, Metal Enclosure |
Weight | 4.62kg |
Power Value/Consumption | <65W Max |
Mounting | 2U Rack Mount |
ESD Protection | ±8kV (Air-Gap Discharge) & ±4kV (Contact Discharge) |
Certifications | |
EU/USA | CE/FCC/UL |
Package Details | |

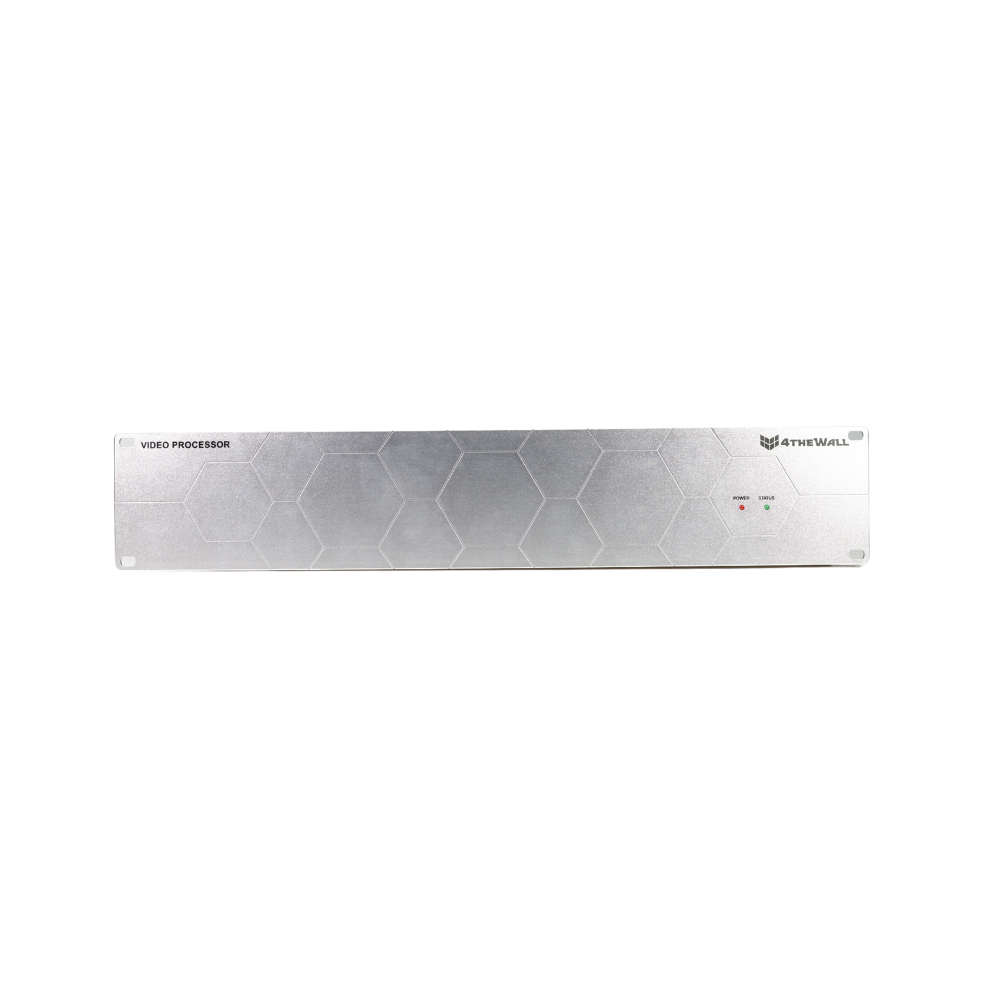

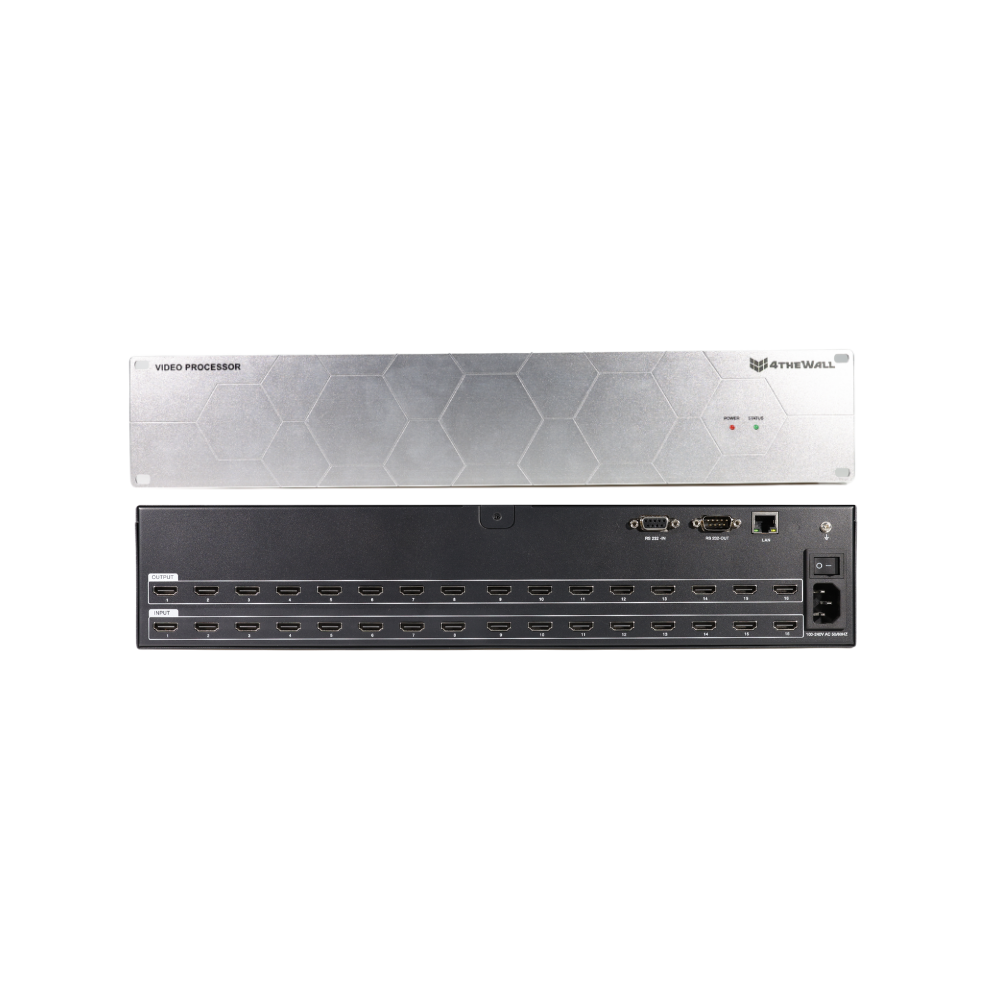

Package Contents | 1 x 16×16 video processor
1 x RS-232 serial cable (male to female, 1.5 meters) 3 1 x AC power cord (1.5 meters) 4 x Rubber foot 4 x Machine screw (M3*4) 1 x User manual |
