- Compliant with VESA DisplayPort 1.4a ALT Mode
- Support HDCP 2.3/2.2/1.x
- Support HBR3, HBR2, HBR and RBR (8.1/5.4/2.7/1.62Gbps)
- Video resolution up to 4K@60Hz RGB/YCbCr 4:4:4
- Support 18Gbps video bandwidth
- Signal transmission distance can be extended up to 328ft / 100m via CAT5E/6/6A/7 cable
- Supports USB 2.0 data and device extension
- Supports bi-directional IR and RS-232 pass-through
- Supports CEC pass-through
- Supports LPCM, Dolby Digital/Plus/EX, Dolby TrueHD and Dolby Atmos
- Supports DTS, DTS-EX, DTS 96/24, DTS High Resolution Audio, DTS-HD Master Audio and DTS:X
- Supports audio de-embedding on the receiver
- Advanced EDID management
- Supports HDR, HDR10, HDR10+, Dolby Vision and HLG pass-through
- Supports bi-directional PoC (Power over Cable)
- Compact design for easy and flexible installation
- 24/7 stability and working
| Input and Output | |

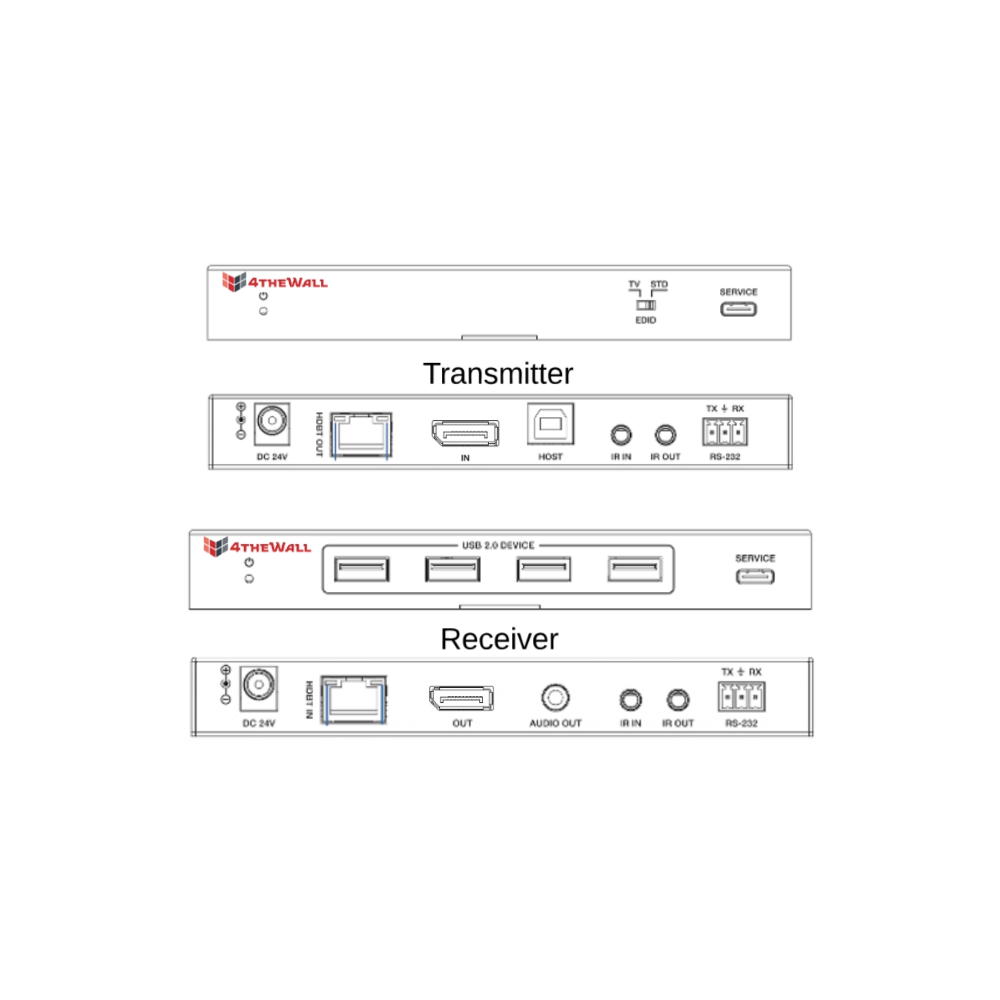

| Transmitter | 1× IN DP1.4a Input 1× HDBT OUT [RJ45] Output 1× HOST [USB-B, 4-pin female] 1× IR IN [3.5mm audio jack] – Wideband 20k-60kHz ,5Vp-p 1× IR OUT [3.5mm audio jack] – Wideband 20k-60kHz ,5Vp-p 1× RS-232 [3pin-3.5mm phoenix connector] 1× SERVICE [USB-C] |
| Receiver | 1× HDBT IN [RJ45] Input 1× OUT DP1.4a Output 1× AUDIO OUT [3.5mm audio jack] 4× USB 2.0 DEVICE 1× IR IN [3.5mm audio jack] – Wideband 20k-60kHz ,5Vp-p 1× IR OUT [3.5mm audio jack] – Wideband 20k-60kHz ,5Vp-p 1× RS-232 [3pin-3.5mm phoenix connector] 1× SERVICE [USB-C] |
| Inputs Resolution | Up to 4K@60Hz 4:4:4 |
| HDCP Compliance | HDCP 2.3/2.2/1.x |
| General Features | |
| Video Bandwith | 32.4Gbps (8.1/5.4/2.7/1.62Gbps) |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Color | 8/10/12bit |
| Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X |
| Transmission Distance | 100m/328ft for 4K@60Hz over CAT5e/6 cable |
| Others | |
| Power Connection | DC 24V/1A; Support bi-directional PoC function, |
| Working Temperature | 32 – 104°F / 0 – 40°C |
| Humidity Range | Working: 20%~80% (relative humidity, non-condensing) Storage: 10%~90% (relative humidity, non-condensing) |
| Storage Temperature | -4 – 140°F / -20 – 60°C |
| Dimensions | Transmitter/Receiver: 157mm (W) × 88mm (D) × 20mm (H) |
| Weight | Transmitter: 382g; Receiver: 371g |
| Power Value/Consumption | Transmitter: 5.76W; Receiver: 12.06W |
| Mounting | Desktop, optional rack mount kit |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Compliance | |
| EU/USA | CE/FCC/UL DoC document |
| Package Details | |
| Package Contents | 1× 4K60 DP™ over HDBaseT Extender (Transmitter) 1× 4K60 DP™ over HDBaseT Extender (Receiver) 1× 24V/1A Locking Power Supply 1× USB Cable (USB-A to USB-B) 1× IR Blaster Cable (1.5m) 1× IR Wideband Receiver Cable (1.5m) 2× 3pin-3.5mm Phoenix Connector 4× Mounting Ear 8× Machine Screw (KM3*6) 1× QR Code for User Manual |
