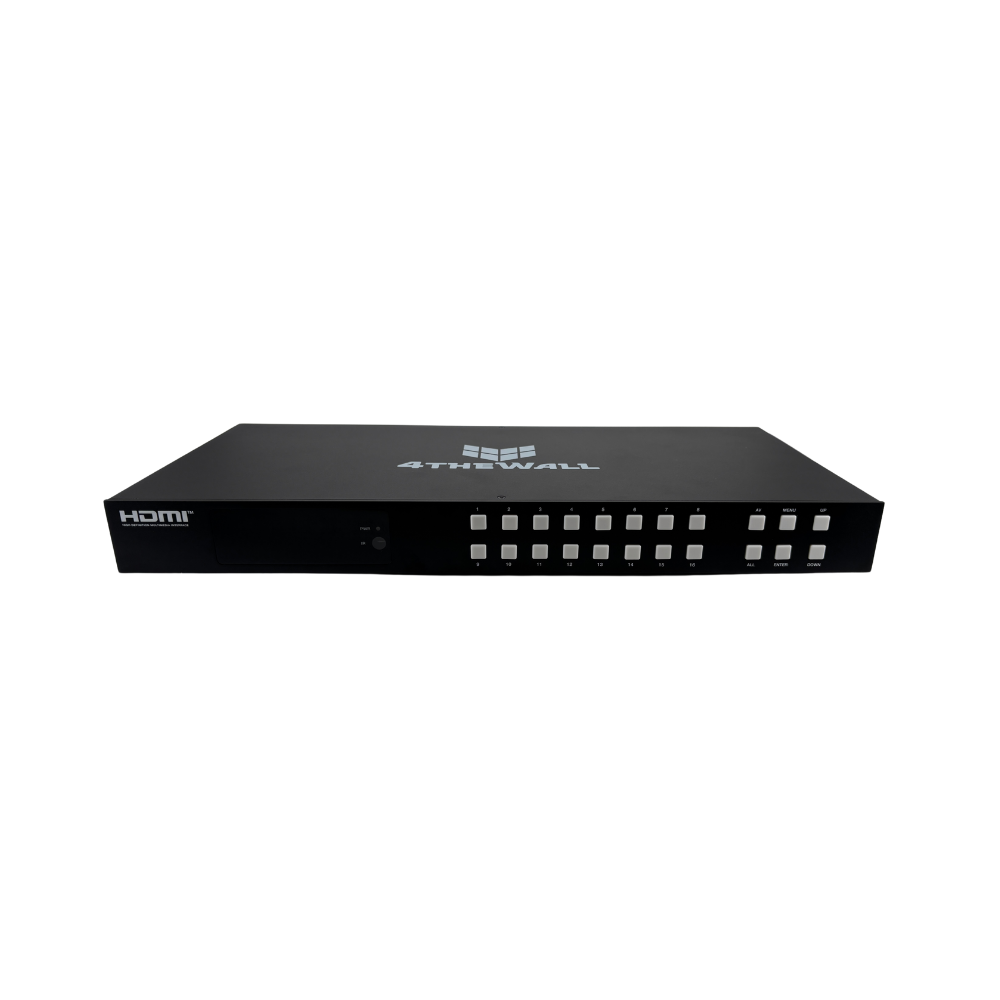

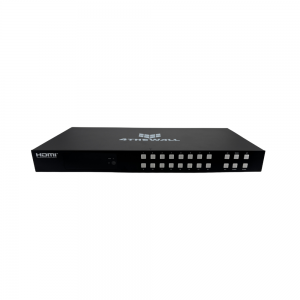

16 X HDMI 2.0b Input
-
16 X HDMI 2.0b Output (Matrix)
-
Supported HDCP 2.2/1.4, DVI 1.0
-
Supported 18Gbps bandwidth
-
Supported 4K@60Hz Input and Output
-
Support Scaling
-
Compact Design
-
Control WEB GUI, TCP/IP, RS232, Front Panel Buttons and IR remote
-
EDID Management
-
Supported 8 sets De-Embedded audio to analog and Coax audio ports
-
ARC audio return to the coaxial ports output only
-
1U Rack mount design
| Input and Output | |
| Inputs | 16 x HDMI 2.0b Type A (19-pin female) |
| Outputs | 16 x HDMI 2.0b Type A (19-pin female), 16 x Coax Out |
| Inputs Resolution | Up to 4K@60Hz |
| Outputs Resolution | Up to 4K@60Hz – Support Scaling |
| General Features | |
| Video Bandwith | 18Gbps |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| 3D Support | Yes |
| Color | 8/10/12bit |
| HDCP | 2.2 and 1.x |
| Audio Formats | Analog: PCM2.0, HDMI:PCM2.0/5.1/7.1 CH, Dolby Digital/Plus and DTS/DTS (HR), SPDIF:Dolby Digital DTS 5.1 |
| HDR Support | HDR10, HDR10+. Dolby Vision, HLG |
| Management Features | |
| Management and Control | IR Remote Control, WEB GUI, TCP/IP, RS232 (3pin Phoenix) with API, Front Panel Button |
| Others | |
| Power Connection | DC 12V/3.75A (US/EU standard) (Locking connector), AC 100-240V 50/60Hz |
| Working Temperature | 32 – 104°F / 0 – 40°C |
| Humidity Range | 20 – 90% RH (no condensation) |
| Storage Temperature | -4 – 140°F / -20 – 60°C |
| Dimensions | 440mm × 200mm × 44mm – Width/Depth/Height, Metal Enclosure |
| Weight | 3.1kg |
| Power Value/Consumption | 76.8W Max |
| Mounting | 1U Rack Mount |
| ESD Protection | ±8kV (Air-Gap Discharge) & ±4kV (Contact Discharge) |
| Certifications | |
| EU/USA | CE/FCC/UL |
| Package Details | |
| Package Contents | 1 x 18Gbps 16×16 HDMI Matrix
1 x 24V/3.75A Power Adapter 1 x IR Remote 1 x RS-232 serial cable (1.5 meters, male to female head) 2 x Mounting Ear 1 x User Manual |
