Supported HDCP 2.2/1.4, DVI 1.0
-
Supported 18Gbps bandwidth
-
Transmitter HDMI Loop Out
-
Extender Set (Transmitter, Receiver)
-
Maximum distance 4K2K 120 mt (single mode fiber cable)
-
HDR, HDR10+, Dolby Vision and HLG supported
-
Support bidirectional IR, RS232 and CEC pass-through supported
-
Supported PoC
-
Supported De-Embedded audio to analog stereo output on the RX
-
Compact design

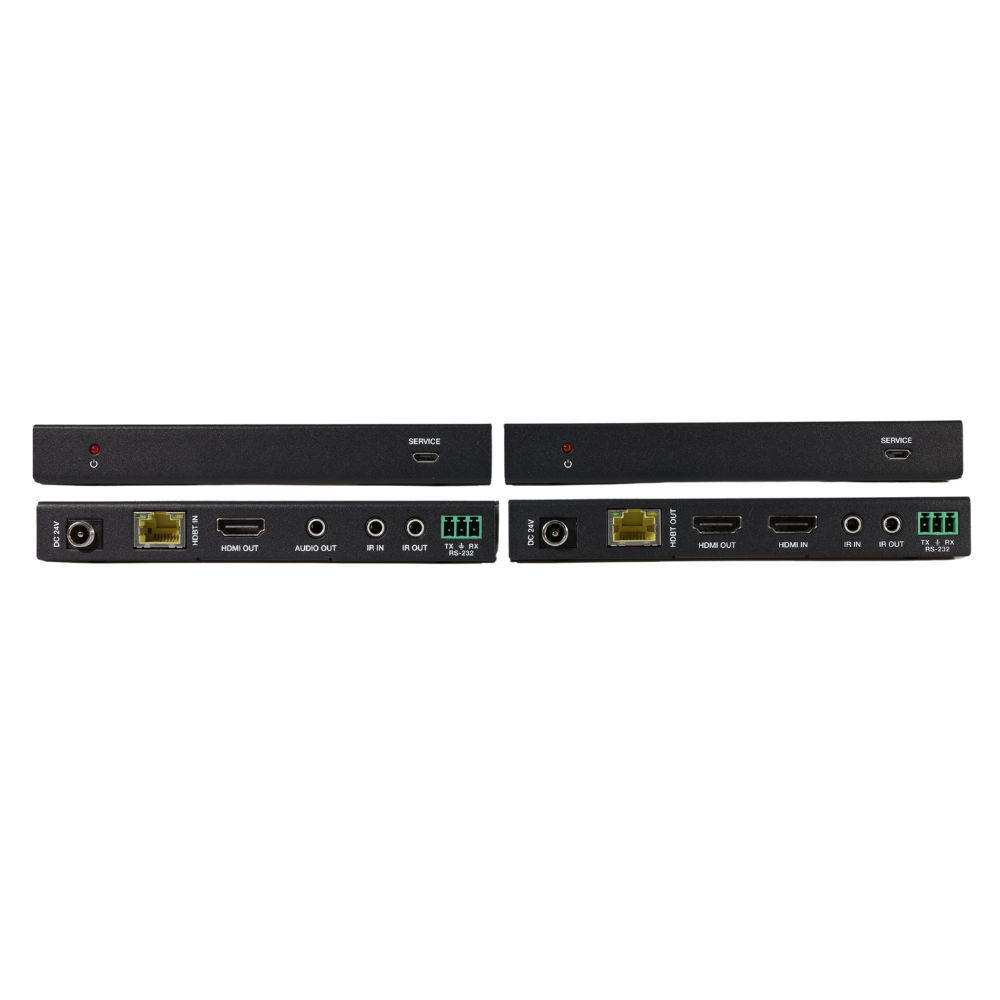

| Input and Output | |
| Inputs (TX) | 1 x HDMI Type A (19-pin female), 1 x IR In, 1x RS-232, 1 x Mini-USB for service |
| Outputs (TX) | 1 x HDMI Type A (19-pin female), 1 x HDBT Out (RJ45, 8-pin female), 1 x IR Out (3.5mm stereo mini-jack) |
| Inputs (RX) | 1 x HDBT IN (RJ45, 8-pin female), 1 x IR In (3.5mm stereo mini-jack), 1 x Mini-USB for service |
| Outputs (RX) | 1 x HDMI Type A, 1 x RS-232 (3.81 mm Phoenix) 1 x IR OUT (3.5 mm Stereo Mini-jack) 1 x 3.5 mm Audio Out |
| Network Features | |
| Ethernet | N/A |
| IP Address Features | N/A |
| Management Features | |
| Hardware Software Upgrade | Micro USB |
| Management Options | IR Remote Control, RS232 |
| General Features | |
| Power Connection | AC 100-240V 50/60Hz, DC 24V/1A (Locking connector) |
| Working Temperature | 32 – 104°F / 0 – 40°C |
| Humidity Range | 20 – 90% RH (no condensation) |
| Storage Temperature | -4 – 140°F / -20 – 60°C |
| Dimensions | 65mm × 140mm × 18mm – Width/Depth/Height, Metal Enclosure |
| Weight | Transmitter: 160g, Receiver: 155g |
| Power Value | 9.36W |
| Mounting | Desktop / Rack Mount kit |
| Resolution/Distance | 4K2K – 120M, 1080P – 150M |
| Certifications | |
| EU/USA | CE/FCC/UL |
| Package Details | |
| Package Content | 1 × 18Gbps HDMI over Optical Fiber Extender (Transmitter),
1× 18Gbps HDMI over Optical Fiber Extender (Receiver), 1 × IR Blaster cable (1.5 meters), 1× IR Receiver cable (1.5 meters), 2 × 5V / 1A Power adapter, 2 × 3-pin 3.81 mm Phoenix connector, 1 × User Manual |
