- HDMI 1.4 and HDCP 1.4 compliant
- Video resolution up to 3840×2160@30Hz
- Support 10.2Gbps video bandwidth
- Signal transmission distance can be extended up to 328ft / 100m via CAT5E/6/6A/7 cable
- Support point-to-point signal extension
- Support signal distribution, multicast mode, distributed matrix and video wall (up to 9×9) functions over a 1G Network Switch
- Intelligent video wall management makes it achievable of novel layout of wall configurations
- Support LPCM 2.0CH (32/44.1/48KHz) audio format
- Support audio embedding and extracting
- Support RS-232 control (pass-through & Guest mode)
- Support main stream and sub stream encoding modes
- Stream parameters can be configured via Web GUI or Controller Box
- Controlled via RS-232, TCP/IP, Web GUI and Controller Box
- Support POE function (802.3af Class 3, PD mode)
- Smart networking design for easy and flexible installation
| Input and Output | |

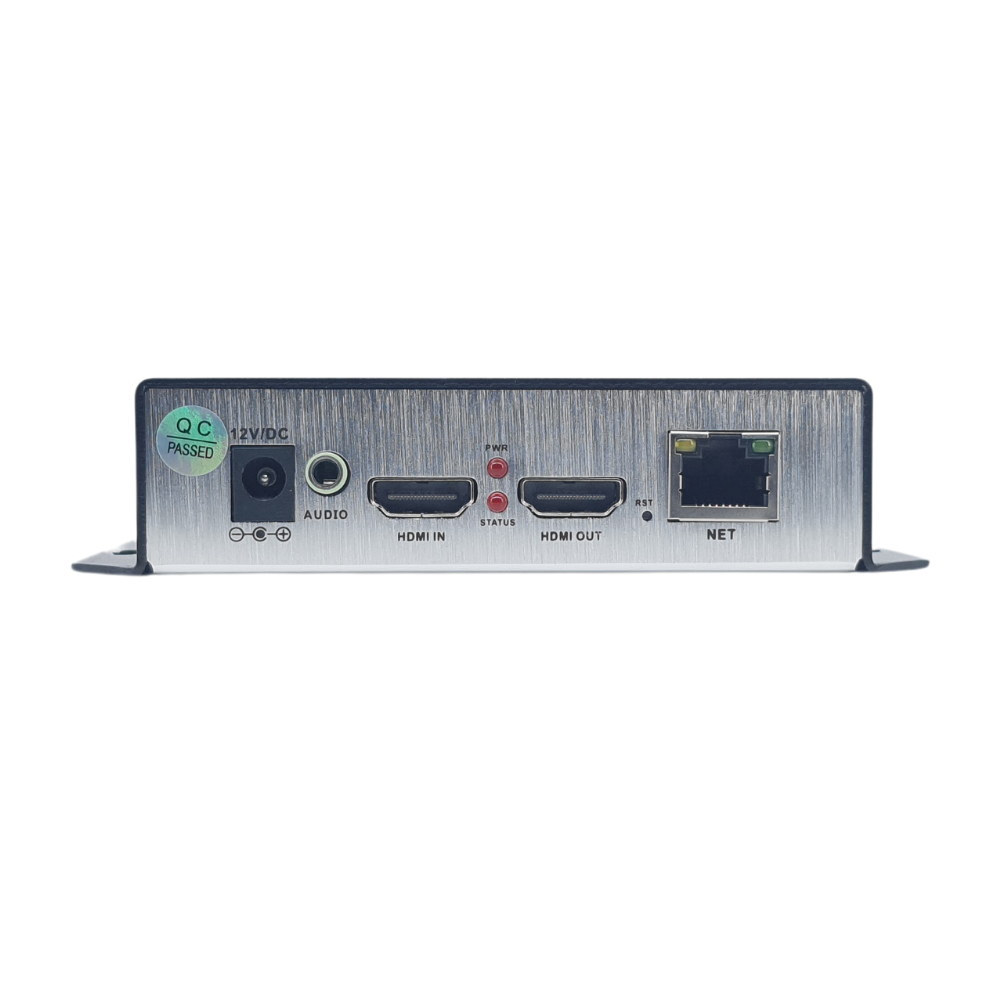

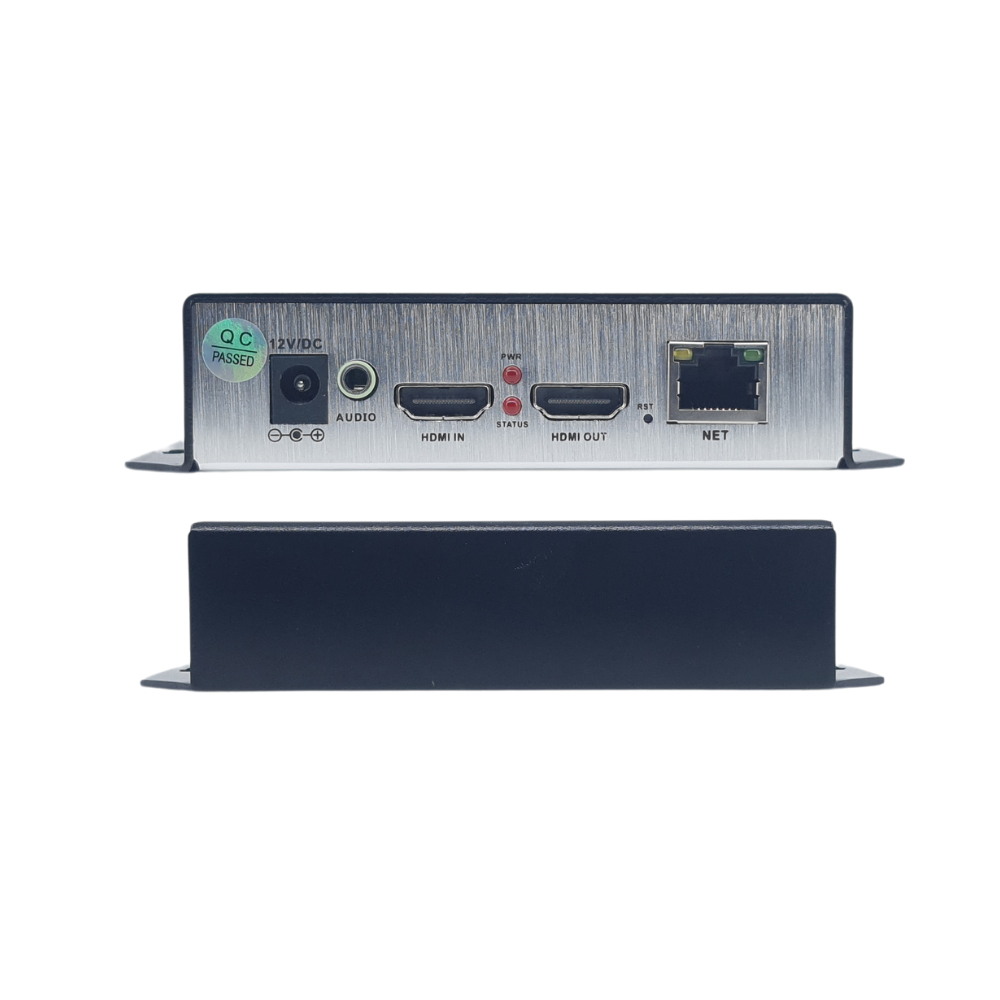

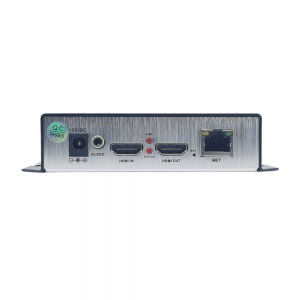

| Inputs & Outputs | 1 x HDMI input, 1 x HDMI loopback Max support 3840×2160@30Hz, 1 x Stereo audio In (3.5 mm) |
| Inputs Resolution | Up to 3840×2160@30Hz |
| Network | 1x LAN (RJ45 connector), Gigabit |
| General Features | |
| Video Bandwith | 10.2Gbps |
| Color Space | RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 |
| Video Compression Standart | H.265/H.264 – 0.1 to 32 Mbps bitrate and 5 to 60 Fps support – VBR or CBR HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) ONVIF |
| Color | 8/10/12bit |
| Audio Formats | AAC/AAC+/AAC++/MP3/MP2/AC3 G711 |
| Transmission Distance | 100m (CAT5E/6/6A/7) |
| Management Features | |
| Management and Control | TCP/IP, Web GUI, and API |
| Others | |
| Power Connection | AC100 – 240V 50/60Hz, DC 12V/1A |
| Working Temperature | 14 – 113°F / -10 – 45°C |
| Humidity Range | 5 – 90% RH (no condensation) |
| Storage Temperature | -4 – 140°F / -20 – 60°C |

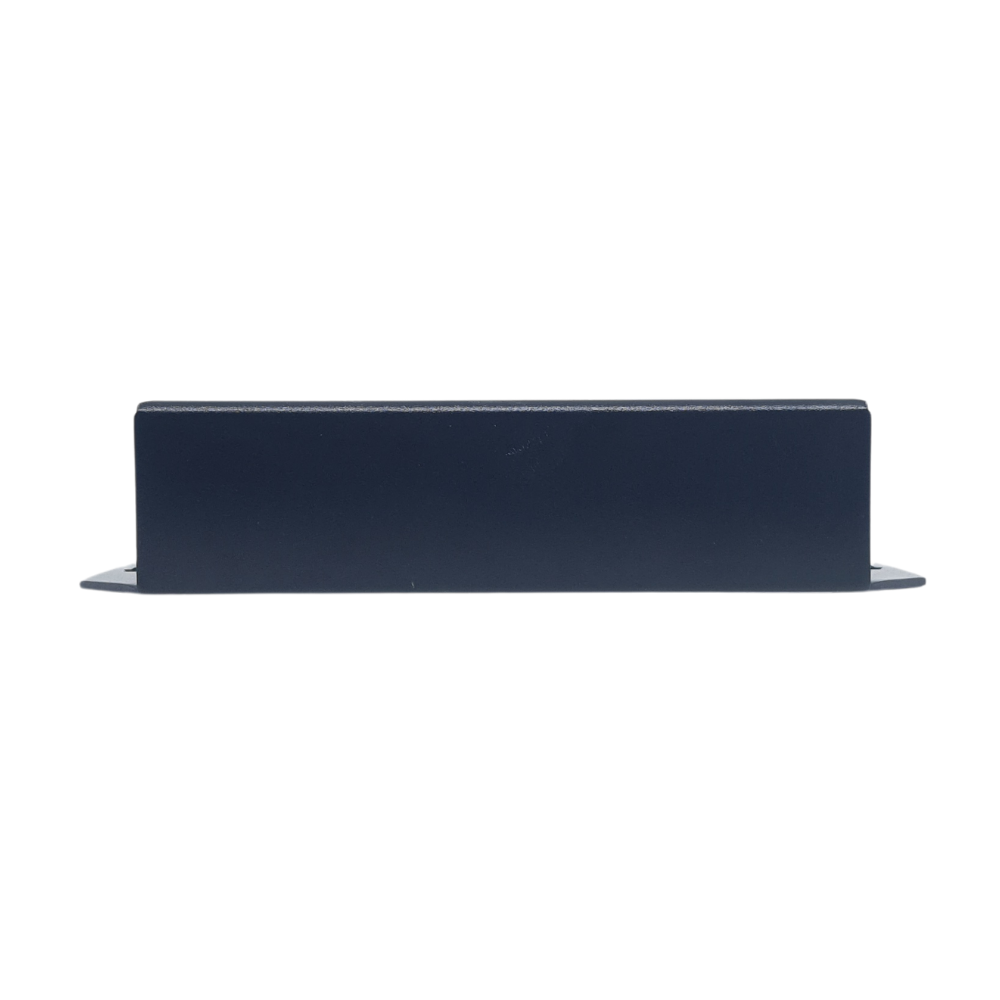

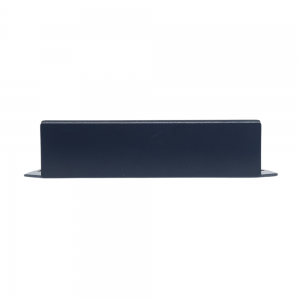

| Dimensions | 170mm × 130mm × 30mm – Width/Depth/Height, Metal Enclosure |
| Weight | 300 gr |
| Power Value/Consumption | 2.6W |
| Mounting | Desktop |
| ESD Protection | ±8kV (Air-Gap Discharge) & ±4kV (Contact Discharge) |
| Certifications | |
| EU/USA | CE/FCC/UL |
| Package Details | |
| Package Contents | 1 x 2160P over IP 100M/1GbE Encoder 1 x 12V/1A Locking Power Adapter 1 x User Manual |
